**THIS ROOF SHIPS FREIGHT, ADDITIONAL INFORMATION IS NEEDED BEFORE SHIPMENT**

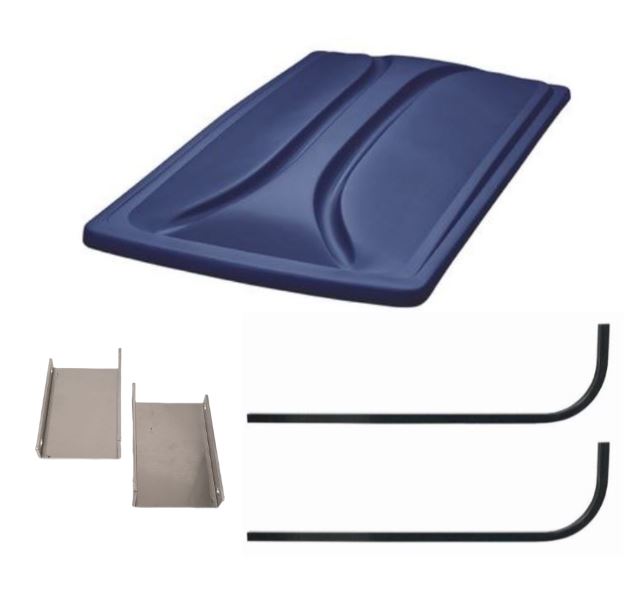

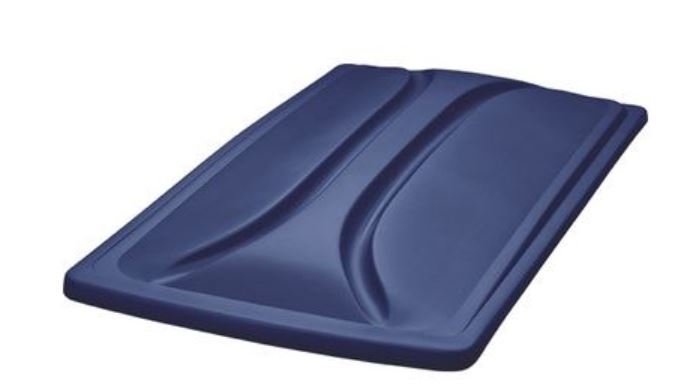

This 80" Navy Double Take Top is designed to replace the factory top on Club Car DS 2000 & up, 4-passenger golf carts with rear seat kits. Includes (1) 80" roof, (1) set of rear candy canes and (1) front mounting bracket (not pictured). This extended top will provide shelter for persons in rear seat
. Exclusively designed to fit Double Take track-style enclosures (sold separately)
. Thermo-formed from solid colored plastic
. Textured scratch-resistant finish
. Track top frame includes Kwick-track rails for easy enclosure installation
. Pre-drilled for easy top-handle installation

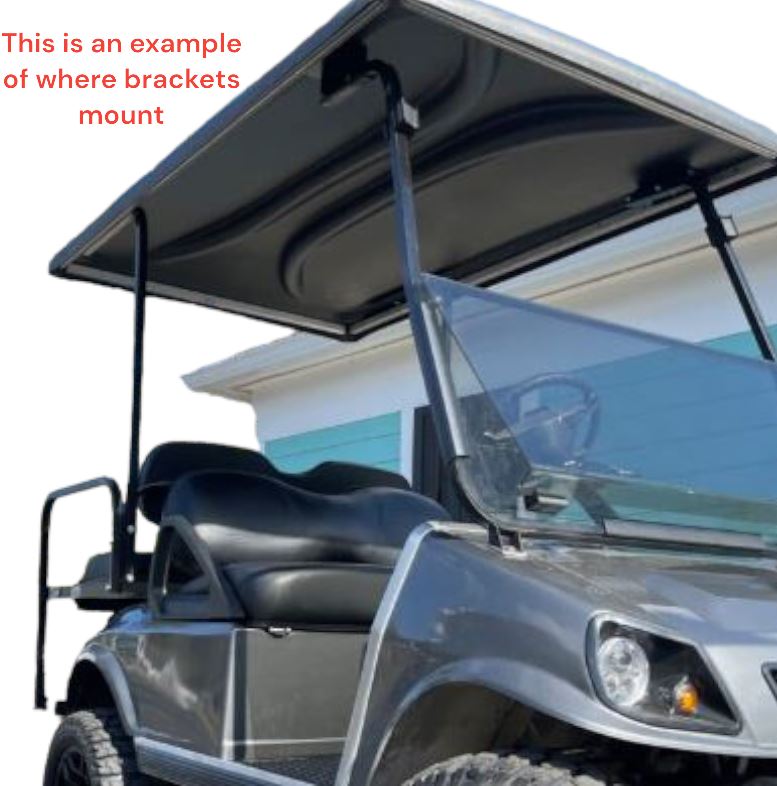

Mounting brackets are included, but NO hardware

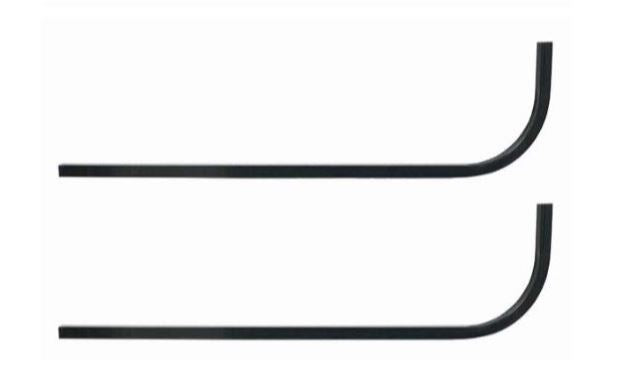

. Contains (1) set of candy cane style rear struts
. Designed to match an extended golf cart top with a rear flip seat
. No pre-drilled holes so that the end user will have the flexibility to drill as needed.
. Steel Tubing thickness - 3/4 of an inch
. Candy Canes do NOT include hardware
. Candy Cane Dimensions: 39 3/8" L x 11.25" W
. Also included is the front mounting bracket, designed specifically for the mounting of this roof (This is NOT the windshield frame. This is only a bracket that satisfies the spacing when mounting roof TO the frame)
This kit is for Club Car DS 2000 & up Golf Carts Only
It is important that you know the year, make and model of your golf cart before purchasing this 80" roof kit
Will NOT fit Club Car, Yamaha or the Club Car Precedent.. will also not fit the older model DS (1976-1999) as a different front mounting bracket is needed.
Professional Installation is highly recommended. We do NOT offer technical support.
Please Note: Brackets ship via USPS, only roof ships freight. In some instances, one shipment might be received before the other. USPS tracking will be on the order itself and the freight shipping will be sent via email
