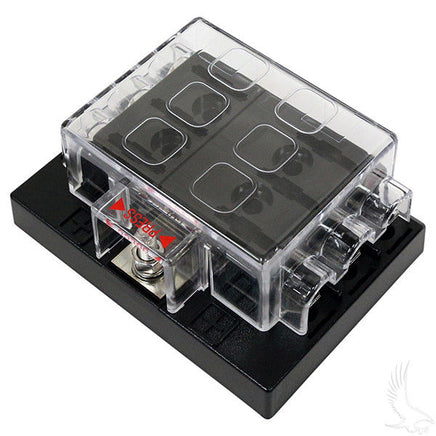

The Fuse Block is an electric panel on which various vehicle fuses can be mounted to in order to distribute any electrical services, such as accessories, throughout the vehicle.
. Positive distribution bus with #10-32 stud
. Can be used for 24-hour circuits
. Includes 20 pictographic labels of common circuits
. Tin-plated copper buses and fuse clips
. Accepts ring or spade type terminals
. Accepts ATC and ATO fast acting blade fuses
. Voltage Maximum Operating 32V DC
. Amperage Maximum Operating (per circuit) 25 Amps
. Amperage Maximum Operating (per block) 100 Amps
. Stud Terminal #10-32 with hex nut, flat washer and lock washer included
. Four 5.5mm diameter mounting holes for #10 screws
. Polycarbonate base and cover material for rugged lightweight construction
. Measures only: 2.75”W x 3.7”H x 1.55”D
. Fuses sold separately
. Heavy duty black plastic molded base
. Perfect for auto, RV, boat, utility vehicle and golf cart electrical circuits
. Popular ATC fuses are a convenient and easy way to protect individual circuits
